Garnet のパフォーマンスについて
#csharp #dontet #garnet #redis #cache #benchmark
https://microsoft.github.io/garnet/docs/benchmarking/results-resp-bench
TL;DR
Garnet は Write が非常に高速で、Read も Redis と比較しても大きな差はありませんでした。
またクライアント数が増えても安定してパフォーマンスが出ているような結果でした。
逆に Redis はクライアント数が増えると急激にパフォーマンスが落ちる傾向があります。
実際に計測してみた
ドキュメントを参考にローカルで Garnet と Redis のパフォーマンスを比較してみました。
環境
Apple: M2 Pro
macOS Sequoia: 15.4.1
memory: 32GB
セットアップ
dotnet の実行環境は準備済みの前提です。
1: Garnet の GitHub リポジトリをクローン
git clone https://github.com/microsoft/garnet.git
Garnet を起動する場合
host=127.0.0.1
port=6379
dotnet run -c Release --framework=net9.0 --project main/GarnetServer -- \
--bind $host \
--port $port \
--no-pubsub \
--no-obj \
--index 1g
_________
/_||___||_\ Garnet 1.0.84 64 bit; standalone mode
'. \ / .' Listening on: 127.0.0.1:6379
'.\ /.' https://aka.ms/GetGarnet
'.'
* Ready to accept connections
Redis を起動する場合(少し古いですが Redis 7.0.8 を使用)
./redis-server \
--bind $host \
--port $port \
--logfile "" \
--save "" \
--appendonly no \
--protected-mode no \
--io-threads 32
65402:C 07 Oct 2025 01:22:15.071 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
65402:C 07 Oct 2025 01:22:15.072 # Redis version=7.0.8, bits=64, commit=00000000, modified=0, pid=65402, just started
ベンチマーク
GET のパフォーマンスを計測する
host=127.0.0.1
port=6379
valuelength=128
batchsize=1
dbsize=16777216
dotnet run -c Release --framework=net9.0 --project benchmark/Resp.benchmark \
--host $host \
--port $port \
--op GET \
--keylength 8 \
--valuelength $valuelength \
--threads 1,2,4,8,16,32,64,128 \
--batchsize $batchsize \
--dbsize $dbsize
Garnet の実行結果
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Throughput
skipLoad: Disabled
DBsize: 16777216
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 15
NumThreads: 1,2,4,8,16,32,64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: LightClient
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Generating 4096 MSET request batches of size 4096 each; total 16777216 ops
Resizing request buffer from 65536 to 131072
Resizing request buffer from 131072 to 262144
Resizing request buffer from 262144 to 524288
Resizing request buffer from 524288 to 1048576
Request generation complete
maxBytesWritten out of maxBufferSize: 614417/1048576
Loading time: 20.611 secs
Operation type: MSET
Num threads: 8
Total time: 3,221.00ms for 16,777,216.00 ops
Throughput: 5,208,697.92 ops/sec
Restricting #buffers to 65536 instead of 33554432
Generating 65536 GET request batches of size 1 each; total 65536 ops
Request generation complete
maxBytesWritten out of maxBufferSize: 27/65536
Loading time: 0.836 secs
Operation type: GET
Num threads: 1
Total time: 15,005.00ms for 373,268.00 ops
Throughput: 24,876.24 ops/sec
Operation type: GET
Num threads: 2
Total time: 15,005.00ms for 458,033.00 ops
Throughput: 30,525.36 ops/sec
Operation type: GET
Num threads: 4
Total time: 15,005.00ms for 769,790.00 ops
Throughput: 51,302.23 ops/sec
Operation type: GET
Num threads: 8
Total time: 15,005.00ms for 1,074,386.00 ops
Throughput: 71,601.87 ops/sec
Operation type: GET
Num threads: 16
Total time: 15,007.00ms for 1,223,065.00 ops
Throughput: 81,499.63 ops/sec
Operation type: GET
Num threads: 32
Total time: 15,006.00ms for 1,385,600.00 ops
Throughput: 92,336.40 ops/sec
Operation type: GET
Num threads: 64
Total time: 15,005.00ms for 1,528,231.00 ops
Throughput: 101,848.12 ops/sec
Operation type: GET
Num threads: 128
Total time: 15,009.00ms for 1,723,916.00 ops
Throughput: 114,858.82 ops/sec
Redis の実行結果
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Throughput
skipLoad: Disabled
DBsize: 16777216
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 15
NumThreads: 1,2,4,8,16,32,64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: LightClient
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Generating 4096 MSET request batches of size 4096 each; total 16777216 ops
Resizing request buffer from 65536 to 131072
Resizing request buffer from 131072 to 262144
Resizing request buffer from 262144 to 524288
Resizing request buffer from 524288 to 1048576
Request generation complete
maxBytesWritten out of maxBufferSize: 614417/1048576
Loading time: 20.401 secs
Operation type: MSET
Num threads: 8
Total time: 19,187.00ms for 16,777,216.00 ops
Throughput: 874,405.38 ops/sec
Restricting #buffers to 65536 instead of 33554432
Generating 65536 GET request batches of size 1 each; total 65536 ops
Request generation complete
maxBytesWritten out of maxBufferSize: 27/65536
Loading time: 1.297 secs
Operation type: GET
Num threads: 1
Total time: 15,004.00ms for 387,965.00 ops
Throughput: 25,857.44 ops/sec
Operation type: GET
Num threads: 2
Total time: 15,003.00ms for 622,014.00 ops
Throughput: 41,459.31 ops/sec
Operation type: GET
Num threads: 4
Total time: 15,003.00ms for 950,833.00 ops
Throughput: 63,376.19 ops/sec
Operation type: GET
Num threads: 8
Total time: 15,006.00ms for 1,429,158.00 ops
Throughput: 95,239.10 ops/sec
Operation type: GET
Num threads: 16
Total time: 15,005.00ms for 1,631,821.00 ops
Throughput: 108,751.82 ops/sec
Operation type: GET
Num threads: 32
Total time: 15,005.00ms for 1,734,260.00 ops
Throughput: 115,578.81 ops/sec
Operation type: GET
Num threads: 64
Total time: 15,038.00ms for 1,872,499.00 ops
Throughput: 124,517.82 ops/sec
Operation type: GET
Num threads: 128
Total time: 15,126.00ms for 44,364.00 ops
Throughput: 2,932.96 ops/sec
Get の場合、Redis はスレッド数 128 で急激にパフォーマンスが落ちています。
余談でMSET の場合、Garnet は Redis の 5.9倍のパフォーマンスを発揮しています。
Read は Redis と比較しても大きな差はありませんが、Write はかなり高速なことがわかります。
次に SET を試してみます
host=127.0.0.1
port=6379
valuelength=128
batchsize=1
dbsize=16777216
dotnet run -c Release --framework=net9.0 --project benchmark/Resp.benchmark \
--host $host \
--port $port \
--op SET \
--keylength 8 \
--valuelength $valuelength \
--threads 1,2,4,8,16,32,64,128 \
--batchsize $batchsize \
--dbsize $dbsize
Garnet
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Throughput
skipLoad: Disabled
DBsize: 16777216
TotalOps: 33554432
Op Benchmark: SET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 15
NumThreads: 1,2,4,8,16,32,64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: LightClient
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Generating 4096 MSET request batches of size 4096 each; total 16777216 ops
Resizing request buffer from 65536 to 131072
Resizing request buffer from 131072 to 262144
Resizing request buffer from 262144 to 524288
Resizing request buffer from 524288 to 1048576
Request generation complete
maxBytesWritten out of maxBufferSize: 614417/1048576
Loading time: 20.617 secs
Operation type: MSET
Num threads: 8
Total time: 3,416.00ms for 16,777,216.00 ops
Throughput: 4,911,363.00 ops/sec
Restricting #buffers to 65536 instead of 33554432
Generating 65536 SET request batches of size 1 each; total 65536 ops
Request generation complete
maxBytesWritten out of maxBufferSize: 163/65536
Loading time: 0.835 secs
Operation type: SET
Num threads: 1
Total time: 15,030.00ms for 355,899.00 ops
Throughput: 23,679.24 ops/sec
Operation type: SET
Num threads: 2
Total time: 15,005.00ms for 458,448.00 ops
Throughput: 30,553.02 ops/sec
Operation type: SET
Num threads: 4
Total time: 15,005.00ms for 792,266.00 ops
Throughput: 52,800.13 ops/sec
Operation type: SET
Num threads: 8
Total time: 15,005.00ms for 1,042,501.00 ops
Throughput: 69,476.91 ops/sec
Operation type: SET
Num threads: 16
Total time: 15,002.00ms for 1,122,309.00 ops
Throughput: 74,810.63 ops/sec
Operation type: SET
Num threads: 32
Total time: 15,005.00ms for 1,478,596.00 ops
Throughput: 98,540.22 ops/sec
Operation type: SET
Num threads: 64
Total time: 15,006.00ms for 1,556,088.00 ops
Throughput: 103,697.72 ops/sec
Operation type: SET
Num threads: 128
Total time: 15,006.00ms for 1,768,729.00 ops
Throughput: 117,868.12 ops/sec
Redis
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Throughput
skipLoad: Disabled
DBsize: 16777216
TotalOps: 33554432
Op Benchmark: SET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 15
NumThreads: 1,2,4,8,16,32,64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: LightClient
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Generating 4096 MSET request batches of size 4096 each; total 16777216 ops
Resizing request buffer from 65536 to 131072
Resizing request buffer from 131072 to 262144
Resizing request buffer from 262144 to 524288
Resizing request buffer from 524288 to 1048576
Request generation complete
maxBytesWritten out of maxBufferSize: 614417/1048576
Loading time: 18.878 secs
Operation type: MSET
Num threads: 8
Total time: 18,685.00ms for 16,777,216.00 ops
Throughput: 897,897.56 ops/sec
Restricting #buffers to 65536 instead of 33554432
Generating 65536 SET request batches of size 1 each; total 65536 ops
Request generation complete
maxBytesWritten out of maxBufferSize: 163/65536
Loading time: 0.901 secs
Operation type: SET
Num threads: 1
Total time: 15,005.00ms for 384,230.00 ops
Throughput: 25,606.80 ops/sec
Operation type: SET
Num threads: 2
Total time: 15,005.00ms for 628,027.00 ops
Throughput: 41,854.52 ops/sec
Operation type: SET
Num threads: 4
Total time: 15,005.00ms for 850,736.00 ops
Throughput: 56,696.83 ops/sec
Operation type: SET
Num threads: 8
Total time: 15,005.00ms for 1,320,627.00 ops
Throughput: 88,012.46 ops/sec
Operation type: SET
Num threads: 16
Total time: 15,005.00ms for 1,425,479.00 ops
Throughput: 95,000.27 ops/sec
Operation type: SET
Num threads: 32
Total time: 15,002.00ms for 1,466,709.00 ops
Throughput: 97,767.56 ops/sec
Operation type: SET
Num threads: 64
Total time: 15,006.00ms for 1,387,583.00 ops
Throughput: 92,468.55 ops/sec
Operation type: SET
Num threads: 128
Total time: 15,068.00ms for 38,379.00 ops
Throughput: 2,547.05 ops/sec
SET の場合も Redis はスレッド数 128 で急激にスループットが落ちています。
逆に Garnet はスレッド数が増えても安定してパフォーマンスが出ています。
ローカルなのとこれで設定として等価的なものなのかあまり自信がないですが、規模が大きくなってもスループットが出しやすいのは Garnet なのか？という感触を得ました。

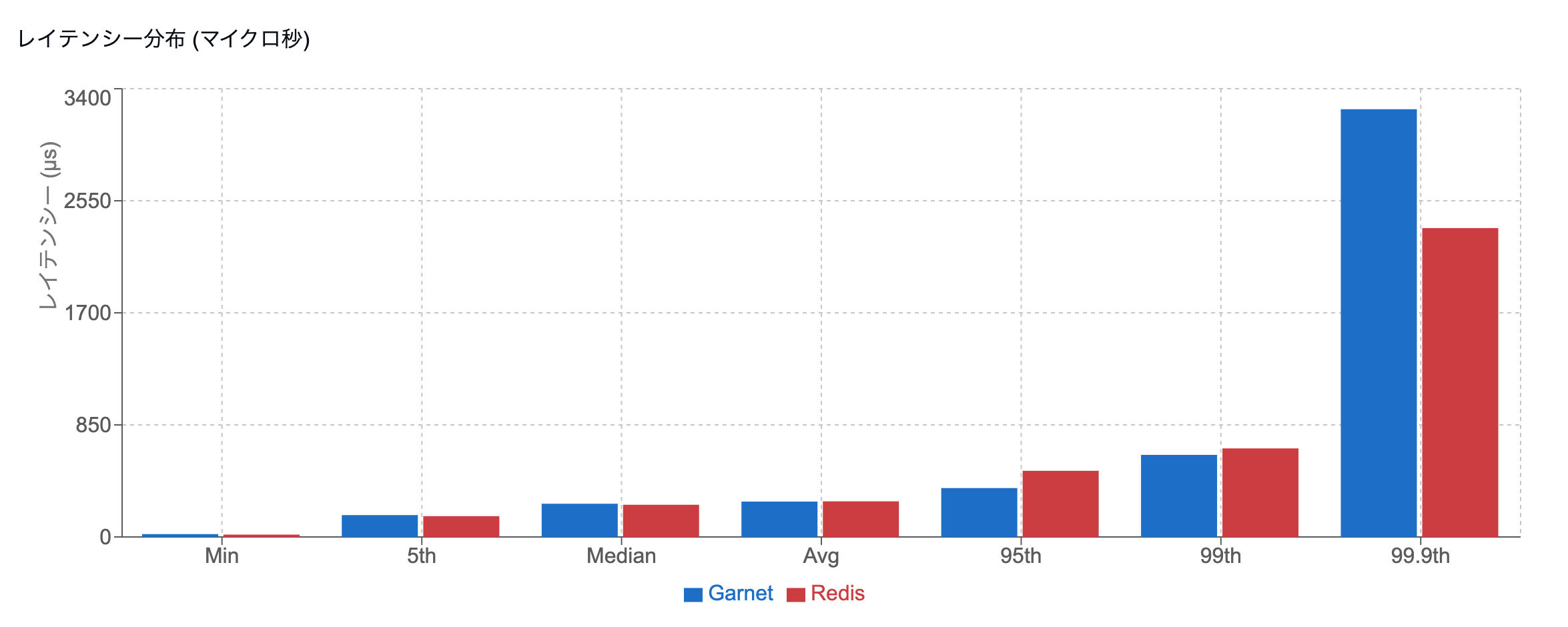

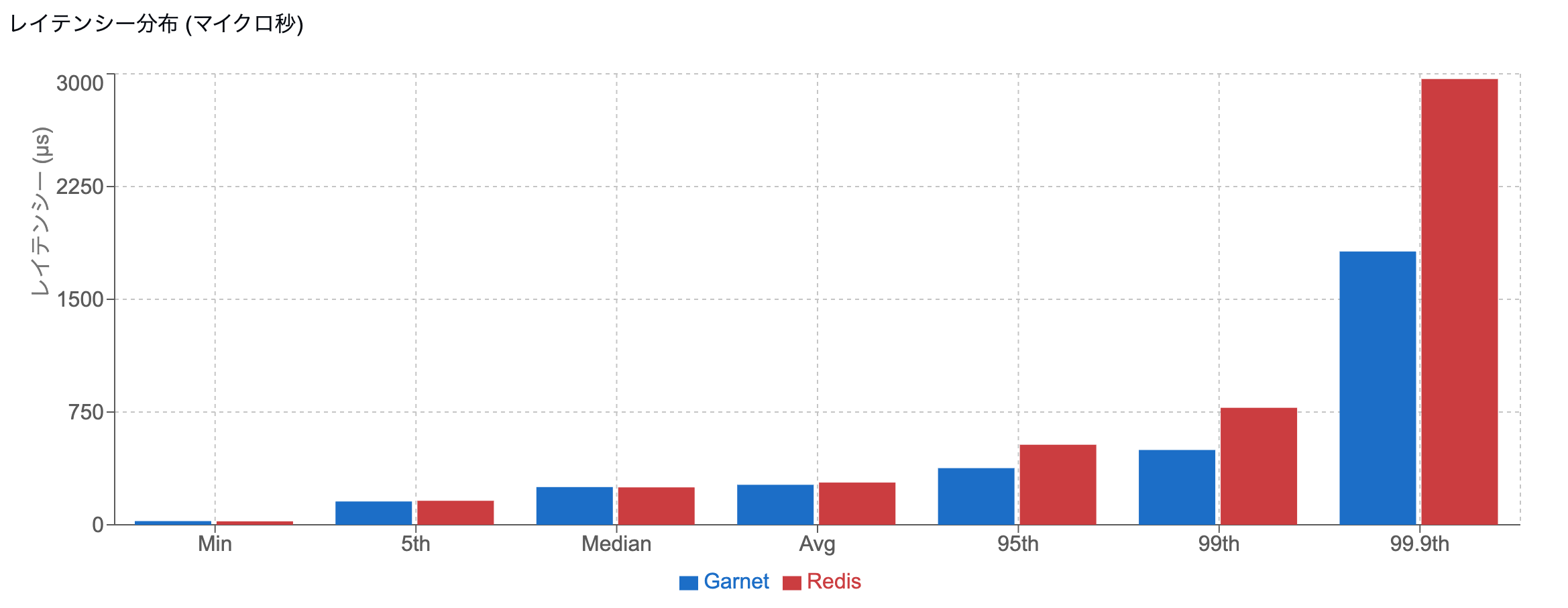

次にレイテンシーを計測してみます。GET:80, SET:20 の割合で実行してみます。
valuelength=128
batchsize=1
dotnet run -c Release --framework=net9.0 --project benchmark/Resp.benchmark \
-- \
--host $host \
--port $port \
--batchsize 1 \
--threads 1,2,4,8,16,32,64,128 \
--client GarnetClientSession \
--runtime 35 \
--op-workload GET,SET \
--op-percent 80,20 \
--online \
--valuelength $valuelength \
--keylength 8 \
--dbsize 1024 \
--itp $batchsize
Garnet
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Online
skipLoad: Disabled
DBsize: 1024
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 35
NumThreads: 1,2,4,8,16,32,64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: GarnetClientSession
Pool: False
OpWorkload GET,SET
OpPercent 80,20
Intra thread parallelism: 1
SyncMode: False
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Running benchmark using GarnetClientSession client type
Using OpRunnerGarnetClientSession...
[000.02:15:50.(info)] |online| min (us); 5th (us); median (us); avg (us); 95th (us); 99th (us); 99.9th (us); total_ops; iter_tops; tpt (Kops/sec)
[000.02:15:50.(info)] |online| 16.32 29.31 36.35 41.4 61.18 84.99 140.29 48084 48084 23.83
[000.02:15:52.(info)] |online| 16.32 29.31 36.35 40.8 59.65 81.92 135.17 98250 50166 25.02
[000.02:15:54.(info)] |online| 15.68 29.57 37.63 43.09 66.05 89.6 201.73 139365 41115 20.51
[000.02:15:56.(info)] |online| 15.68 29.57 37.89 42.81 64.26 87.04 168.96 186975 47610 23.75
[000.02:15:58.(info)] |online| 15.68 29.44 36.86 41.39 61.18 83.46 158.72 241571 54596 27.28
[000.02:16:00.(info)] |online| 15.68 29.57 37.38 42.19 62.72 83.97 153.6 284356 42785 21.34
[000.02:16:02.(info)] |online| 15.68 29.57 37.38 42.21 62.72 83.97 158.72 331510 47154 23.54
[000.02:16:04.(info)] |online| 15.68 29.57 37.12 41.53 61.18 82.94 154.62 385047 53537 26.7
[000.02:16:06.(info)] |online| 15.68 29.44 36.86 41.06 60.16 81.92 148.48 438148 53101 26.48
[000.02:16:08.(info)] |online| 15.68 29.44 36.35 40.61 59.14 80.38 143.36 492172 54024 26.94
[000.02:16:10.(info)] |online| 15.68 29.44 36.35 40.21 58.11 79.36 140.29 546755 54583 27.25
[000.02:16:12.(info)] |online| 15.36 29.44 36.1 40.1 57.86 78.85 139.26 598064 51309 25.59
[000.02:16:14.(info)] |online| 14.14 29.44 36.1 40.71 57.86 80.9 216.06 638014 39950 19.94
[000.02:16:16.(info)] |online| 14.14 29.44 36.1 40.88 58.11 82.94 268.29 684370 46356 23.18
[000.02:16:18.(info)] |online| 14.14 29.44 36.1 40.76 58.11 82.94 249.86 735472 51102 25.58
[000.02:16:20.(info)] |online| 14.14 29.44 35.84 40.58 57.6 82.43 239.62 788010 52538 26.27
[000.02:16:22.(info)] |online| 14.14 29.44 35.84 40.33 56.83 81.41 235.52 842365 54355 27.19
[000.02:16:24.(info)] |online| 14.14 29.44 35.84 40.27 56.58 80.9 229.38 893234 50869 25.43
[000.02:16:26.(info)] |online| 14.14 29.44 35.84 40.1 56.06 79.87 221.18 946987 53753 26.89
[000.02:16:28.(info)] |online| 14.14 29.44 35.84 40.04 56.06 79.87 216.06 998239 51252 25.63
[000.02:16:30.(info)] |online| 14.14 29.44 35.84 40 56.06 79.87 215.04 1049024 50785 25.44
[000.02:16:32.(info)] |online| 14.14 29.44 35.84 39.93 55.81 79.36 207.87 1100790 51766 25.88
[000.02:16:34.(info)] |online| 14.14 29.44 35.84 39.98 55.55 78.85 205.82 1149593 48803 24.4
[000.02:16:36.(info)] |online| 14.14 29.44 35.84 39.89 55.55 78.33 201.73 1202238 52645 26.34
[000.02:16:38.(info)] |online| 14.14 29.44 35.84 39.76 55.04 77.82 197.63 1256364 54126 27.12
[000.02:16:40.(info)] |online| 14.14 29.44 35.84 39.73 55.04 77.82 196.61 1307350 50986 25.49
[000.02:16:42.(info)] |online| 14.14 29.44 36.1 40.05 56.32 79.36 196.61 1346864 39514 19.76
[000.02:16:44.(info)] |online| 14.14 29.44 36.1 40.3 57.09 80.38 199.68 1388124 41260 20.64
[000.02:16:46.(info)] |online| 14.14 29.44 36.1 40.18 56.83 79.87 198.66 1442028 53904 26.95
[000.02:16:48.(info)] |online| 14.14 29.44 36.1 40.07 56.32 79.36 194.56 1495740 53712 26.86
[000.02:16:50.(info)] |online| 16.64 29.31 35.07 36.53 43.52 51.46 82.43 54700 54700 27.35
[000.02:16:52.(info)] |online| 15.36 29.18 35.33 37.56 46.08 59.9 129.54 106411 51711 25.86
[000.02:16:54.(info)] |online| 15.36 29.44 36.35 40.38 55.81 78.85 249.86 148309 41898 20.99
[000.02:16:56.(info)] |online| 15.36 29.44 35.84 39.34 52.74 74.24 197.63 203055 54746 27.37
[000.02:16:58.(info)] |online| 15.36 29.44 35.58 38.88 51.2 71.68 162.82 256821 53766 26.9
Redis
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Online
skipLoad: Disabled
DBsize: 1024
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 35
NumThreads: 1,2,4,8,16,32,64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: GarnetClientSession
Pool: False
OpWorkload GET,SET
OpPercent 80,20
Intra thread parallelism: 1
SyncMode: False
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Running benchmark using GarnetClientSession client type
Using OpRunnerGarnetClientSession...
[000.02:19:04.(info)] |online| min (us); 5th (us); median (us); avg (us); 95th (us); 99th (us); 99.9th (us); total_ops; iter_tops; tpt (Kops/sec)
[000.02:19:04.(info)] |online| 14.14 25.86 31.23 34.61 46.08 60.16 119.81 57557 57557 28.51
[000.02:19:06.(info)] |online| 14.14 25.09 30.46 33.1 43.01 55.55 96.77 121188 63631 31.74
[000.02:19:08.(info)] |online| 14.14 25.22 30.34 32.84 42.5 54.78 98.3 182973 61785 30.83
[000.02:19:10.(info)] |online| 14.14 25.09 30.34 32.8 42.24 54.78 103.94 244125 61152 30.5
[000.02:19:12.(info)] |online| 13.89 25.09 30.34 32.94 41.98 56.83 129.02 303640 59515 29.76
[000.02:19:14.(info)] |online| 13.31 25.09 30.46 33.57 44.54 61.44 171.01 357377 53737 26.81
[000.02:19:16.(info)] |online| 13.31 25.22 30.46 33.43 43.78 59.9 155.65 418547 61170 30.51
[000.02:19:18.(info)] |online| 13.31 24.96 30.46 33.22 43.26 58.62 149.5 481325 62778 31.31
[000.02:19:20.(info)] |online| 13.31 25.09 30.46 33.2 43.26 58.37 148.48 541938 60613 30.23
[000.02:19:22.(info)] |online| 13.31 25.09 30.46 33.44 43.78 61.18 155.65 597637 55699 27.85
[000.02:19:24.(info)] |online| 13.31 25.09 30.46 33.5 44.29 61.44 157.7 656001 58364 29.17
[000.02:19:26.(info)] |online| 13.31 25.22 30.46 33.33 43.78 60.16 147.46 719251 63250 31.55
[000.02:19:28.(info)] |online| 13.31 25.09 30.46 33.23 43.52 59.39 144.38 781492 62241 31.04
[000.02:19:30.(info)] |online| 13.31 25.09 30.46 33.22 43.52 59.39 141.31 841896 60404 30.13
[000.02:19:32.(info)] |online| 13.31 25.09 30.46 33.78 44.03 62.46 240.64 887024 45128 22.53
[000.02:19:34.(info)] |online| 13.31 25.09 30.59 33.88 44.54 63.74 238.59 943317 56293 28.1
[000.02:19:36.(info)] |online| 13.31 25.09 30.59 33.85 44.29 63.23 229.38 1003299 59982 29.92
[000.02:19:38.(info)] |online| 13.31 25.22 30.59 33.77 44.03 62.46 219.14 1064473 61174 30.56
[000.02:19:40.(info)] |online| 13.31 25.22 30.46 33.68 43.78 61.7 211.97 1126787 62314 31.09
[000.02:19:42.(info)] |online| 13.31 25.22 30.59 33.7 43.78 61.95 206.85 1185254 58467 29.16
[000.02:19:44.(info)] |online| 13.31 25.22 30.59 33.75 44.03 62.98 211.97 1242715 57461 28.66
[000.02:19:46.(info)] |online| 13.31 25.34 30.59 33.75 44.03 63.23 211.97 1301989 59274 29.56
[000.02:19:48.(info)] |online| 13.31 25.34 30.59 33.72 44.03 62.72 205.82 1362392 60403 30.13
[000.02:19:50.(info)] |online| 13.31 25.34 30.59 33.67 43.78 62.46 200.7 1423491 61099 30.49
[000.02:19:52.(info)] |online| 13.31 25.34 30.59 33.63 43.78 61.95 199.68 1484856 61365 30.62
[000.02:19:54.(info)] |online| 13.31 25.34 30.59 33.69 44.03 62.72 201.73 1541067 56211 28.09
[000.02:19:56.(info)] |online| 13.31 25.47 30.59 33.73 44.03 62.46 199.68 1598422 57355 28.61
[000.02:19:58.(info)] |online| 13.31 25.47 30.59 33.71 44.03 62.46 195.58 1658610 60188 30.02
[000.02:20:00.(info)] |online| 13.31 25.47 30.59 33.69 44.03 61.95 189.44 1719017 60407 30.14
[000.02:20:02.(info)] |online| 13.31 25.47 30.59 33.64 43.78 61.44 185.34 1780850 61833 30.85
[000.02:20:04.(info)] |online| 14.4 25.6 30.46 32.92 43.01 58.37 131.07 60554 60554 30.28
[000.02:20:06.(info)] |online| 14.4 25.6 30.46 33.21 42.75 58.11 139.26 120180 59626 29.74
[000.02:20:09.(info)] |online| 14.4 25.6 30.46 33.25 42.75 59.9 174.08 180026 59846 29.89
[000.02:20:11.(info)] |online| 14.4 25.6 30.46 33.25 43.26 60.16 175.1 240019 59993 29.95
[000.02:20:13.(info)] |online| 14.4 25.73 30.46 33.15 42.5 58.37 163.84 300949 60930 30.4
レイテンシーでは Redis の方が若干良い結果となりました。
ここまでやっていて感じたのですが、Redis は単一スレッド(クライアント)だとスコアが良いのですが、スレッド数を増やすと急激にパフォーマンスが落ちる傾向があります。
その結果がレイテンシーにも影響がでていると考え、スレッド数を 64, 128 に制限して再度レイテンシーを測定してみました。
Garnet
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Online
skipLoad: Disabled
DBsize: 1024
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 35
NumThreads: 64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: GarnetClientSession
Pool: False
OpWorkload GET,SET
OpPercent 80,20
Intra thread parallelism: 1
SyncMode: False
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Running benchmark using GarnetClientSession client type
Using OpRunnerGarnetClientSession...
[000.02:27:59.(info)] |online| min (us); 5th (us); median (us); avg (us); 95th (us); 99th (us); 99.9th (us); total_ops; iter_tops; tpt (Kops/sec)
[000.02:27:59.(info)] |online| 53.76 266.24 458.75 496.43 745.47 1351.68 3915.78 257978 257978 127.65
[000.02:28:01.(info)] |online| 39.17 266.24 458.75 497.89 745.47 1327.1 4751.36 517570 259592 129.41
[000.02:28:03.(info)] |online| 39.17 270.33 460.8 495.62 733.18 1261.57 4390.91 779194 261624 130.42
[000.02:28:05.(info)] |online| 39.17 272.38 460.8 496.83 741.38 1261.57 4554.75 1035565 256371 127.87
[000.02:28:07.(info)] |online| 39.17 274.43 458.75 494.98 741.38 1245.18 4456.45 1298473 262908 131.26
[000.02:28:09.(info)] |online| 39.17 274.43 458.75 493.87 741.38 1220.61 4489.22 1560941 262468 130.97
[000.02:28:11.(info)] |online| 39.17 274.43 456.7 493.73 741.38 1204.22 4620.29 1821081 260140 129.75
[000.02:28:13.(info)] |online| 39.17 274.43 456.7 494.25 745.47 1228.8 4816.9 2078668 257587 128.54
[000.02:28:15.(info)] |online| 39.17 274.43 458.75 495.69 749.57 1236.99 4915.2 2331298 252630 126.06
[000.02:28:17.(info)] |online| 39.17 274.43 456.7 496.12 753.66 1236.99 4980.73 2587576 256278 127.88
[000.02:28:19.(info)] |online| 39.17 274.43 456.7 495.31 749.57 1228.8 4915.2 2850811 263235 131.35
[000.02:28:21.(info)] |online| 25.47 274.43 456.7 496.76 753.66 1253.38 5439.49 3100337 249526 124.58
[000.02:28:23.(info)] |online| 25.47 274.43 458.75 508.34 770.05 1449.98 7471.1 3281996 181659 90.6
[000.02:28:25.(info)] |online| 25.47 272.38 458.75 508.07 770.05 1458.18 7372.8 3536060 254064 126.72
[000.02:28:27.(info)] |online| 25.47 272.38 458.75 508.61 774.14 1466.37 7176.19 3784529 248469 123.92
[000.02:28:29.(info)] |online| 25.47 274.43 458.75 508.42 778.24 1458.18 7012.35 4038215 253686 126.59
[000.02:28:31.(info)] |online| 25.47 274.43 458.75 507.5 774.14 1441.79 6881.28 4298258 260043 129.7
[000.02:28:33.(info)] |online| 25.47 274.43 458.75 506.53 774.14 1425.41 6815.74 4559460 261202 130.41
[000.02:28:35.(info)] |online| 25.47 274.43 458.75 505.38 770.05 1409.02 6651.9 4823073 263613 131.74
[000.02:28:37.(info)] |online| 25.47 274.43 458.75 504.88 770.05 1392.64 6553.6 5081514 258441 129.09
[000.02:28:39.(info)] |online| 25.47 276.48 458.75 504.13 765.95 1368.06 6488.06 5343508 261994 130.67
[000.02:28:41.(info)] |online| 23.81 274.43 458.75 505.86 774.14 1400.83 6488.06 5578714 235206 117.31
[000.02:28:43.(info)] |online| 23.81 274.43 458.75 505.69 774.14 1400.83 6520.83 5833833 255119 127.43
[000.02:28:45.(info)] |online| 23.81 274.43 458.75 506.53 778.24 1409.02 6488.06 6077062 243229 121.43
[000.02:28:47.(info)] |online| 23.81 274.43 458.75 506.92 778.24 1409.02 6586.37 6324992 247930 123.84
[000.02:28:49.(info)] |online| 23.81 274.43 458.75 506.46 778.24 1400.83 6488.06 6583621 258629 128.29
[000.02:28:51.(info)] |online| 23.81 274.43 458.75 505.86 778.24 1384.45 6422.53 6848963 265342 133.54
[000.02:28:53.(info)] |online| 23.81 272.38 458.75 505.54 774.14 1368.06 6356.99 7106945 257982 129.83
[000.02:28:55.(info)] |online| 23.81 272.38 458.75 505.41 774.14 1368.06 6324.22 7361996 255051 128.68
[000.02:28:57.(info)] |online| 23.81 272.38 458.75 506.19 778.24 1384.45 6389.76 7603975 241979 121.78
[000.02:28:59.(info)] |online| 44.54 261.12 454.66 498.41 786.43 1294.34 6324.22 257329 257329 129.51
[000.02:29:01.(info)] |online| 44.54 262.14 456.7 502.16 786.43 1318.91 6356.99 510701 253372 127.51
[000.02:29:03.(info)] |online| 44.54 264.19 456.7 504.08 794.62 1351.68 6029.31 763199 252498 127.07
[000.02:29:05.(info)] |online| 44.54 264.19 458.75 504.58 798.72 1359.87 5931.01 1016591 253392 127.52
[000.02:29:07.(info)] |online| 44.54 268.29 458.75 503.38 790.53 1327.1 5668.86 1273791 257200 129.44
Redis
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Online
skipLoad: Disabled
DBsize: 1024
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 35
NumThreads: 64,128
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: GarnetClientSession
Pool: False
OpWorkload GET,SET
OpPercent 80,20
Intra thread parallelism: 1
SyncMode: False
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Running benchmark using GarnetClientSession client type
Using OpRunnerGarnetClientSession...
[000.02:30:05.(info)] |online| min (us); 5th (us); median (us); avg (us); 95th (us); 99th (us); 99.9th (us); total_ops; iter_tops; tpt (Kops/sec)
[000.02:30:05.(info)] |online| 116.22 331.78 667.65 3640.01 8519.68 105906.18 213909.5 35100 35100 16.96
[000.02:30:07.(info)] |online| 108.54 337.92 688.13 5009.76 14942.21 130547.71 236978.18 51621 16521 8.23
[000.02:30:09.(info)] |online| 108.54 352.26 864.26 5459.23 20054.02 137363.45 234881.02 71379 19758 9.84
[000.02:30:11.(info)] |online| 108.54 354.3 794.62 5633.64 20447.23 154140.67 251658.24 91340 19961 9.95
[000.02:30:13.(info)] |online| 91.65 360.45 876.54 5679.65 20840.45 146800.64 270532.61 113808 22468 11.23
[000.02:30:15.(info)] |online| 91.65 360.45 794.62 5367.31 19922.94 133169.15 254803.97 142926 29118 14.52
[000.02:30:17.(info)] |online| 63.23 358.4 667.65 4948.8 13631.49 130023.42 254803.97 182208 39282 19.6
[000.02:30:19.(info)] |online| 63.23 360.45 708.61 5242.79 18481.15 133169.15 255852.54 196049 13841 6.91
[000.02:30:21.(info)] |online| 63.23 360.45 667.65 4860.75 12320.77 128450.56 246415.36 237516 41467 20.69
[000.02:30:23.(info)] |online| 63.23 362.5 671.74 4805.1 12386.3 126877.7 241172.48 268048 30532 15.24
[000.02:30:25.(info)] |online| 63.23 364.54 700.42 4949.77 13631.49 130547.71 240123.9 285990 17942 8.95
[000.02:30:27.(info)] |online| 63.23 366.59 733.18 5154.2 16515.07 132120.58 241172.48 299483 13493 6.75
[000.02:30:29.(info)] |online| 63.23 368.64 765.95 5248.06 17694.72 132644.86 244318.21 318265 18782 9.36
[000.02:30:31.(info)] |online| 63.23 368.64 761.86 5145.16 16646.14 131072 240123.9 348417 30152 15.06
[000.02:30:33.(info)] |online| 63.23 370.69 811.01 5088.12 16711.68 128974.85 236978.18 378605 30188 15.05
[000.02:30:35.(info)] |online| 63.23 372.74 839.68 5165.13 17563.65 130547.71 236978.18 398387 19782 9.88
[000.02:30:37.(info)] |online| 63.23 374.78 851.97 5175.21 17694.72 131596.29 234881.02 421424 23037 11.5
[000.02:30:39.(info)] |online| 63.23 372.74 831.49 4986.08 14942.21 127926.27 232783.87 464159 42735 21.31
[000.02:30:41.(info)] |online| 63.23 372.74 786.43 4856.78 13500.42 126353.41 230686.72 502940 38781 19.34
[000.02:30:43.(info)] |online| 63.23 372.74 778.24 4732.23 11796.48 123207.68 228589.57 542850 39910 19.81
[000.02:30:45.(info)] |online| 63.23 372.74 765.95 4691.68 11796.48 122159.1 227540.99 575444 32594 16.29
[000.02:30:47.(info)] |online| 63.23 372.74 757.76 4716.03 13172.74 121634.82 226492.42 599683 24239 12.09
[000.02:30:49.(info)] |online| 63.23 374.78 782.34 4720.64 13697.02 121110.53 224395.26 625682 25999 12.99
[000.02:30:51.(info)] |online| 63.23 374.78 774.14 4733.24 14090.24 121110.53 223346.69 651168 25486 12.72
[000.02:30:53.(info)] |online| 63.23 372.74 753.66 4731.74 14221.31 120586.24 223346.69 677306 26138 13.05
[000.02:30:55.(info)] |online| 63.23 372.74 720.9 4637.97 13238.27 119537.66 221249.54 720238 42932 21.42
[000.02:30:57.(info)] |online| 63.23 372.74 733.18 4731.8 14614.53 120586.24 220200.96 733204 12966 6.47
[000.02:30:59.(info)] |online| 63.23 374.78 745.47 4734.17 15138.82 120061.95 220200.96 759268 26064 13.01
[000.02:31:01.(info)] |online| 63.23 374.78 733.18 4736.73 15269.89 120061.95 218103.81 786619 27351 13.65
[000.02:31:03.(info)] |online| 48.9 374.78 729.09 4693.09 15138.82 119013.38 216006.66 820728 34109 17.01
[000.02:31:05.(info)] |online| 83.97 370.69 557.05 2830.81 2277.38 76021.76 130023.42 44717 44717 22.2
[000.02:31:07.(info)] |online| 83.97 352.26 544.77 2737.71 2195.46 74448.9 137363.45 93147 48430 24.15
[000.02:31:09.(info)] |online| 83.97 360.45 552.96 2846.72 2146.3 76546.05 152043.52 135143 41996 20.96
[000.02:31:11.(info)] |online| 83.97 364.54 569.34 3309.95 5472.26 87031.81 156237.82 155266 20123 10.04
[000.02:31:13.(info)] |online| 58.11 366.59 585.73 3464.43 7012.35 90701.82 170917.89 186061 30795 15.37
128 並列だと Redis が耐えられなさそうでした。
64 並列(なら Redis が耐えられる)、かつ GET, SET の割合を逆転してみました。
valuelength=128
batchsize=1
dotnet run -c Release --framework=net9.0 --project benchmark/Resp.benchmark \
-- \
--host $host \
--port $port \
--batchsize 1 \
--threads 64 \
--client GarnetClientSession \
--runtime 35 \
--op-workload GET,SET \
--op-percent 20,80 \
--online \
--valuelength $valuelength \
--keylength 8 \
--dbsize 1024 \
--itp $batchsize
Garnet
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Online
skipLoad: Disabled
DBsize: 1024
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 35
NumThreads: 64
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: GarnetClientSession
Pool: False
OpWorkload GET,SET
OpPercent 20,80
Intra thread parallelism: 1
SyncMode: False
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Running benchmark using GarnetClientSession client type
Using OpRunnerGarnetClientSession...
[000.02:36:26.(info)] |online| min (us); 5th (us); median (us); avg (us); 95th (us); 99th (us); 99.9th (us); total_ops; iter_tops; tpt (Kops/sec)
[000.02:36:26.(info)] |online| 39.17 256 462.85 523.25 839.68 1712.13 8650.75 244736 244736 121.1
[000.02:36:28.(info)] |online| 39.17 262.14 462.85 509.41 790.53 1417.22 6815.74 506009 261273 130.18
[000.02:36:30.(info)] |online| 39.17 268.29 456.7 501.47 774.14 1302.53 6684.67 769990 263981 131.66
[000.02:36:32.(info)] |online| 39.17 268.29 456.7 501.94 778.24 1327.1 5963.78 1025003 255013 127.19
[000.02:36:34.(info)] |online| 39.17 268.29 454.66 498.26 765.95 1277.95 6127.62 1289697 264694 132.21
[000.02:36:36.(info)] |online| 39.17 272.38 454.66 497.92 765.95 1277.95 6029.31 1547765 258068 128.91
[000.02:36:38.(info)] |online| 39.17 270.33 454.66 506.76 786.43 1409.02 7700.48 1773837 226072 112.75
[000.02:36:40.(info)] |online| 36.1 272.38 456.7 507.05 786.43 1400.83 7634.94 2025496 251659 125.64
[000.02:36:42.(info)] |online| 36.1 272.38 456.7 508.44 790.53 1433.6 7405.57 2272163 246667 123.03
[000.02:36:44.(info)] |online| 36.1 270.33 456.7 507.29 786.43 1417.22 7274.5 2530273 258110 128.8
[000.02:36:46.(info)] |online| 36.1 270.33 456.7 508.45 790.53 1441.79 7274.5 2776731 246458 122.98
[000.02:36:48.(info)] |online| 36.1 270.33 458.75 507.82 786.43 1417.22 7143.42 3032323 255592 127.8
[000.02:36:50.(info)] |online| 36.1 272.38 458.75 507.32 786.43 1392.64 7143.42 3288201 255878 127.68
[000.02:36:52.(info)] |online| 36.1 272.38 458.75 506.72 782.34 1384.45 6881.28 3544763 256562 128.28
[000.02:36:54.(info)] |online| 36.1 272.38 458.75 506.39 786.43 1384.45 6815.74 3800165 255402 127.51
[000.02:36:56.(info)] |online| 36.1 272.38 458.75 505.2 782.34 1368.06 6684.67 4062873 262708 131.09
[000.02:36:58.(info)] |online| 36.1 270.33 458.75 505.73 786.43 1376.26 6619.14 4311585 248712 124.42
[000.02:37:00.(info)] |online| 36.1 270.33 458.75 505.01 782.34 1368.06 6520.83 4571726 260141 129.81
[000.02:37:02.(info)] |online| 25.09 270.33 458.75 504.11 782.34 1359.87 6520.83 4834212 262486 131.05
[000.02:37:04.(info)] |online| 25.09 270.33 458.75 504.6 782.34 1368.06 6488.06 5083556 249344 124.49
[000.02:37:06.(info)] |online| 25.09 270.33 458.75 505.01 786.43 1368.06 6520.83 5333063 249507 124.69
[000.02:37:08.(info)] |online| 25.09 270.33 458.75 504.72 782.34 1359.87 6488.06 5590033 256970 128.29
[000.02:37:10.(info)] |online| 25.09 270.33 458.75 503.56 778.24 1343.49 6389.76 5857553 267520 133.56
[000.02:37:12.(info)] |online| 25.09 270.33 458.75 504 782.34 1351.68 6389.76 6106776 249223 124.36
[000.02:37:14.(info)] |online| 25.09 270.33 458.75 504.21 782.34 1359.87 6455.3 6358179 251403 125.7
[000.02:37:16.(info)] |online| 25.09 270.33 458.75 504.42 782.34 1359.87 6455.3 6608926 250747 125.06
[000.02:37:18.(info)] |online| 25.09 270.33 458.75 503.19 778.24 1343.49 6324.22 6880940 272014 135.8
[000.02:37:20.(info)] |online| 25.09 270.33 458.75 508.11 786.43 1433.6 6946.82 7066624 185684 92.66
[000.02:37:22.(info)] |online| 25.09 270.33 458.75 507.98 786.43 1433.6 7045.12 7320892 254268 126.94
[000.02:37:24.(info)] |online| 25.09 270.33 458.75 507.72 786.43 1417.22 7012.35 7577189 256297 127.96
[000.02:37:26.(info)] |online| 45.06 270.33 456.7 511.08 819.2 1400.83 5799.94 250733 250733 125.3
[000.02:37:28.(info)] |online| 36.35 268.29 456.7 511.96 815.1 1515.52 6619.14 500318 249585 124.67
[000.02:37:30.(info)] |online| 36.35 272.38 458.75 508.87 798.72 1433.6 6815.74 755470 255152 127.38
[000.02:37:32.(info)] |online| 36.35 272.38 458.75 505.74 786.43 1359.87 6684.67 1013727 258257 128.87
[000.02:37:34.(info)] |online| 36.35 270.33 456.7 504.83 786.43 1351.68 7176.19 1269136 255409 127.7
Redis
<<<<<<< Benchmark Configuration >>>>>>>>
benchmarkType: Online
skipLoad: Disabled
DBsize: 1024
TotalOps: 33554432
Op Benchmark: GET
KeyLength: 8
ValueLength: 128
BatchSize: 1
RunTime: 35
NumThreads: 64
Auth:
Load Using SET: Disabled
ClientType used for benchmarking: GarnetClientSession
Pool: False
OpWorkload GET,SET
OpPercent 20,80
Intra thread parallelism: 1
SyncMode: False
TLS: Disabled
ClientHistogram: False
minWorkerThreads: 1000
minCompletionPortThreads: 1000
----------------------------------
Running benchmark using GarnetClientSession client type
Using OpRunnerGarnetClientSession...
[000.02:38:51.(info)] |online| min (us); 5th (us); median (us); avg (us); 95th (us); 99th (us); 99.9th (us); total_ops; iter_tops; tpt (Kops/sec)
[000.02:38:51.(info)] |online| 70.14 411.65 905.22 4660.43 22675.46 102236.16 193986.56 27168 27168 13.44
[000.02:38:53.(info)] |online| 70.14 389.12 720.9 3969.11 15794.18 92274.69 181403.65 64600 37432 18.61
[000.02:38:55.(info)] |online| 70.14 389.12 737.28 4346.8 17432.58 102236.16 181403.65 88641 24041 11.87
[000.02:38:57.(info)] |online| 70.14 380.93 684.03 4102.14 15925.25 96993.28 187695.1 125405 36764 18.36
[000.02:38:59.(info)] |online| 70.14 380.93 659.46 3954.56 14483.46 96468.99 181403.65 160931 35526 17.74
[000.02:39:01.(info)] |online| 70.14 382.98 630.78 3702.14 11206.66 93847.55 176160.77 207590 46659 23.27
[000.02:39:03.(info)] |online| 70.14 387.07 659.46 3989.36 12976.13 98041.86 178257.92 223472 15882 7.92
[000.02:39:05.(info)] |online| 62.21 385.02 696.32 3960.16 13762.56 96468.99 179306.5 259759 36287 18.1
[000.02:39:07.(info)] |online| 62.21 382.98 667.65 3782.2 11730.94 93323.26 179306.5 305256 45497 22.69
[000.02:39:09.(info)] |online| 62.21 387.07 696.32 3939.35 14352.38 95944.7 179306.5 326250 20994 10.47
[000.02:39:11.(info)] |online| 62.21 389.12 729.09 4069.3 15663.1 96993.28 180355.07 346789 20539 10.25
[000.02:39:13.(info)] |online| 62.21 387.07 733.18 4097.03 15532.03 98041.86 179306.5 375644 28855 14.39
[000.02:39:15.(info)] |online| 62.21 387.07 753.66 4182.5 17039.36 100139.01 179306.5 399676 24032 12.01
[000.02:39:17.(info)] |online| 62.21 389.12 753.66 4243.63 17956.86 100663.3 179306.5 423681 24005 11.98
[000.02:39:19.(info)] |online| 62.21 389.12 782.34 4386.49 19529.73 103809.02 180355.07 438961 15280 7.63
[000.02:39:21.(info)] |online| 62.21 391.17 765.95 4297.37 18087.94 102236.16 180355.07 478104 39143 19.52
[000.02:39:23.(info)] |online| 62.21 389.12 757.76 4195.29 16580.61 101187.58 179306.5 520380 42276 21.11
[000.02:39:25.(info)] |online| 62.21 391.17 770.05 4266.1 17432.58 102760.45 180355.07 542193 21813 10.88
[000.02:39:27.(info)] |online| 62.21 391.17 765.95 4282.46 17432.58 102236.16 181403.65 569264 27071 13.52
[000.02:39:29.(info)] |online| 62.21 391.17 761.86 4257.15 17301.5 102236.16 180355.07 603052 33788 16.89
[000.02:39:31.(info)] |online| 62.21 391.17 761.86 4267.7 16646.14 102760.45 182452.22 632107 29055 14.49
[000.02:39:33.(info)] |online| 62.21 391.17 761.86 4283.96 16777.22 103284.74 181403.65 659422 27315 13.58
[000.02:39:35.(info)] |online| 62.21 393.22 786.43 4283.92 17301.5 102236.16 181403.65 689038 29616 14.76
[000.02:39:37.(info)] |online| 62.21 391.17 765.95 4235.5 16515.07 101711.87 180355.07 727910 38872 19.39
[000.02:39:39.(info)] |online| 62.21 391.17 761.86 4228.7 16777.22 101187.58 180355.07 758797 30887 15.41
[000.02:39:41.(info)] |online| 62.21 391.17 770.05 4249.32 17301.5 101711.87 180355.07 785082 26285 13.12
[000.02:39:43.(info)] |online| 62.21 391.17 765.95 4232.34 17301.5 101187.58 179306.5 819420 34338 17.13
[000.02:39:45.(info)] |online| 62.21 391.17 753.66 4208.99 17170.43 101187.58 178257.92 853449 34029 16.97
[000.02:39:47.(info)] |online| 62.21 391.17 753.66 4227.97 17170.43 101711.87 179306.5 879735 26286 13.11
[000.02:39:49.(info)] |online| 62.21 391.17 765.95 4277.42 17563.65 102760.45 179306.5 900815 21080 10.51
[000.02:39:51.(info)] |online| 91.65 385.02 561.15 2921.49 1441.79 83886.08 164626.43 41873 41873 20.92
[000.02:39:53.(info)] |online| 56.83 378.88 573.44 3347.21 6127.62 85983.23 155189.25 75535 33662 16.79
[000.02:39:55.(info)] |online| 56.83 382.98 614.4 3495.57 6684.67 91226.11 159383.55 109698 34163 17.05
[000.02:39:57.(info)] |online| 56.83 385.02 643.07 3998.73 11337.73 105381.89 180355.07 128267 18569 9.18
[000.02:39:59.(info)] |online| 56.83 391.17 696.32 4614.34 22806.53 110624.77 183500.8 139278 11011 5.49

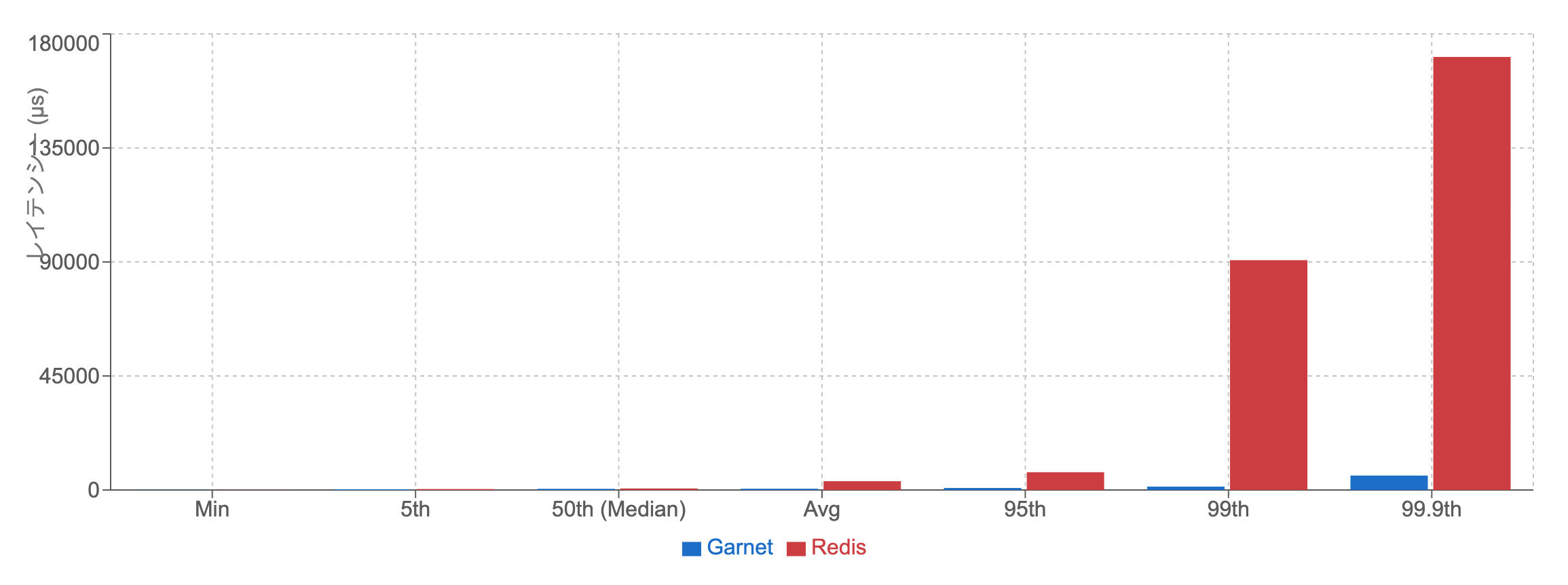

まぁ予想通りではあるのですが、 Redis の平均が悪いです。
レイテンシーのまとめ
Redis はシングルスレッドで動いているので並列が増えるとレイテンシーが跳ね上がりました。
また、そこまで負荷の高くないワークロードであれば Garnet より高速な場合がありました。
逆に Garnet は並列に強いので大規模なワークロードには向いているような印象です。
また、書き込みが多くても安定しているように見えます。
